Electric Order Picker Truck

  • Electric Order Picker Truck
  • Electric Order Picker Truck
  • Electric Order Picker Truck
  • Electric Order Picker Truck

Electric Order Picker Truck

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 15 Days
    Packaging: Nude packing
    Productivity: 500 SETS/MONTH
    Brand: WINGS
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Supply Ability: 500/per month
    Certificate: ISO9000,CE
    HS Code: 84272090
    Port: Qingdao Port,Shanghai Port,Tianjin Port

Basic Info

Model No.: WHA1030

Product Description

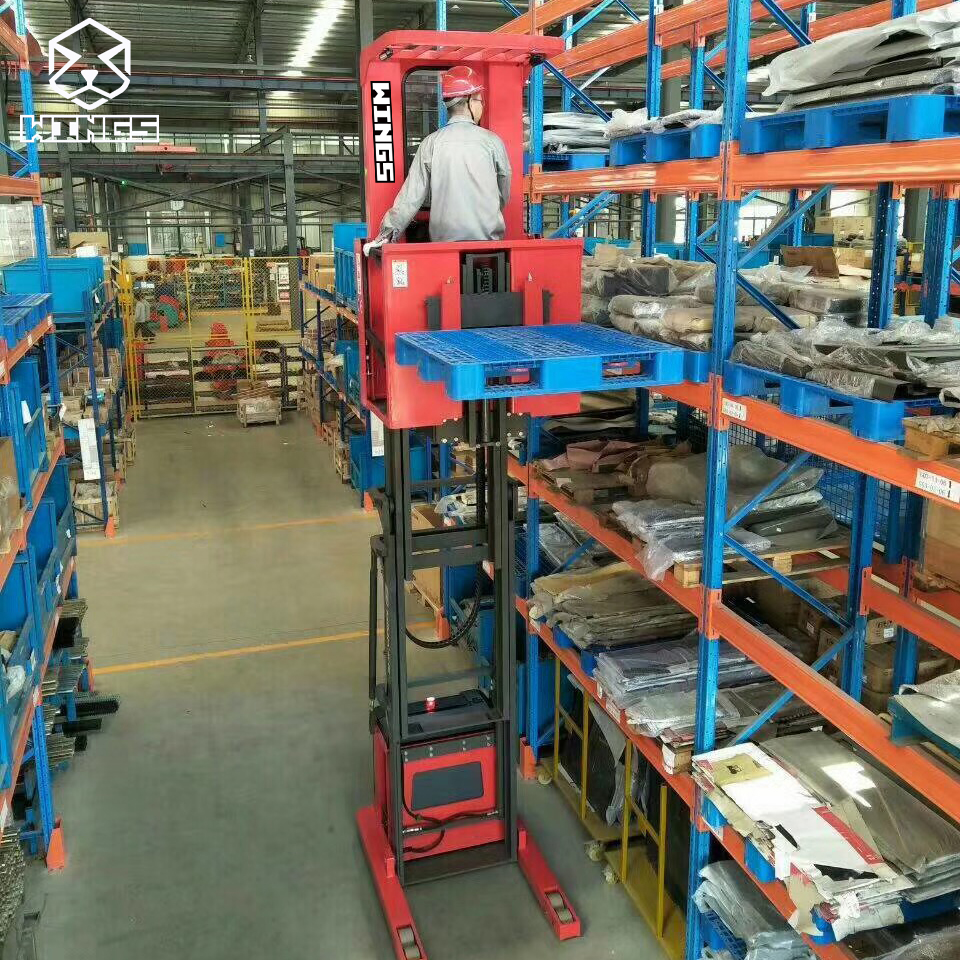

What is electric order picker?

Electric order picker is a kind of warehouse forklift. The operator on the operating table can move up and down together with the loading and unloading device and pick the forklifts that are stored in the shelves on both sides.

Use range of electric order picker forklift:

Electric order picker, its operator can move up and down along with the loading and unloading device, and can act on both sides, so it is suitable for high-rise shelf warehouses.

Its lifting height is 4 to 6 meters, with a maximum of 13 meters, which can greatly increase its space activity range. However, for safety reasons, its movement speed is not very fast.

Application scenarios:

All kinds of warehouses, libraries, and supermarket shelves for light goods storage and retrieval or high-altitude maintenance operations.


Electric Order Picker WHA1030
Standard
1.1 Manufacturer WINGS
1.2 Model WHA1030
1.3 Power Type Battery
1.4 Operation Type Stand on
1.5 Rated Capacity Q(kg) 1000
1.6 Load Center C(mm) 500
1.8 Front Overhand x(mm) 148
1.9 Wheelbase y(mm) 1410
Weight
2.1 Service Weight(incl.battery) kg 2490
2.2 Weight distribution when loadeddrive side/load side kg 940/2550
2.3 Weight distribution when unloadeddrive side/load side kg 1410/1080
Wheel
3.1 Wheel Types PU
3.2 Load Wheel mm φ150×90
3.3 Drive wheel mm φ254×100
3.4 Balance wheel mm /
3.5 Number of wheels,,front/rear(x=drive wheel) 4/1X
3.6 Wheel tread,drive side b10(mm) /
3.7 Wheel tread,load side b11(mm) 1008
Size
4.2 Mast closed height h1(mm) 2300
4.4 Lift height h3(mm) 2760
Max lift height of fork h25(mm) 3530
4.5 Mast extended height h4(mm) 5010
4.7 Overhead guard height h6(mm) 2250
4.8 Platform min.ground clearance h7(mm) 240
4.11 Auxiliary lift height h9(mm) 700
4.14 Platform max.ground clearance h12(mm) 3000
4.14.1 Picking heighth12+1600mm h28(mm) 4600
4.15 Fork face min.ground clearance h13(mm) 70
4.19 Overall length l1(mm) 2825
4.20 Length to forkface l2(mm) 1755
4.21 Overall width b1/b2(mm) 1150
4.22 Fork size l/e/s(mm) 1070/100/40
4.25 Fork outside width b5(mm) 700
4.31 Mast ground clearance m1(mm) 50
4.32 Body ground clearance m2(mm) 50
4.33 Aisle width for pallet 1000*1200 Ast(mm) 3120
4.34 Aisle width for pallet 800*1200 Ast(mm) 3230
4.35 Turning radius Wa(mm) 1625
Function
5.1 Driving speed(load/unload) km/h 6/6.3
5.2 Lifting speed(load/unload) mm/s 115/140
5.3 Lowering speed(load/unload) mm/s 135/140
5.9 Acceleration time0-10mload/unload s
5.10 Brake type Electromagnetic type
Drive
6.1 Driving motor(S2-60min) kw 2.5
6.2 Lifting motor(S3-15%) kw 3
6.4 Battery voltage/capacity V/Ah 24/400
6.5 Battery weight kg 350
8.1 Driving motor type AC
8.4 Driver ear noise(按EN12053 dB(A) 70
8.6 Steering system EPS
Duplex Mast
9.1 Model WHA 10-30
9.2 Lift height h3 2760
9.3 Total lift height h24(h3+h9) 3460
9.4 Fork lift height h25(h3+h9+h13) 3530
9.5 Auxiliary lift height h9 700
9.6 Platform lift height h12(h3+h7) 3000
9.7 Picking height h28(h12+1600) 4600
9.8 Mast closed height h1 2300
9.9 Max mast extended height h4 5010


2



Features:

Electric order picker is an advanced pick-type electric forklift, which has a significant effect on improving work efficiency while ensuring safety with a longer wheelbase.

Small turning radius, suitable for narrow passages, and can be used for tally high-altitude platforms.

The cab is designed according to the most advanced ergonomics, with good operating comfort and high picking efficiency. The suspended driving platform can ensure smooth and efficient picking.

The mast pressure reactor can ensure smooth lifting and lowering at any time, without movement.

Efficient energy-saving design and energy regeneration system can make the battery perform better after each charge.

Three sets of independent braking systems can balance and effectively brake under any working conditions. The two-hand control mode and side door protection can ensure the personal safety of the driver.

High Level Order Picked 4
