Home > Products > Ultrasound machine > Convex Ultrasound Machine For Pregnancy Scanner

Convex Ultrasound Machine For Pregnancy Scanner

  • Convex Ultrasound Machine For Pregnancy Scanner
  • Convex Ultrasound Machine For Pregnancy Scanner
  • Convex Ultrasound Machine For Pregnancy Scanner
  • Convex Ultrasound Machine For Pregnancy Scanner

Convex Ultrasound Machine For Pregnancy Scanner

    Unit Price: 2999 USD
    Min. Order: 1 Piece/Pieces
    Packaging: Carton
    Transportation: Air
    Supply Ability: 100000

Basic Info

Model No.: UProbe-C5C

Product Description

Portable Wireless Ultrasound is a mini ultrasound scanner without screen. probe device combined with integrated ultrasound boards,ultrasound probe integrated with usg board,imaging transmission done by special wifi to pad and phone.We have Single Head Ultrasound Series and Double Head Ultrasound.


Through professional ultrasound software APP,wireless probe wifi connected with smart phone or tablet to become a ultrasound scanner.


Single Head Ultrasound Series have different Specification to chose, including B/W Ultrasound Scanner (80E, 128E, 192E) and Color Doppler Ultrasound (80E, 128E, 192E).


Double Head Ultrasound is Color Doppler Ultrasound with difference probe head to chose, also with different element (128E,192E).


Product Description



Feature


·Advanced digital imaging technology, clear image

· High cost-effective

·Wireless connectivity, easy to operate

·Small and light,easy to carry

·Applicable in emergency, clinic, outdoor and vet inspection

·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

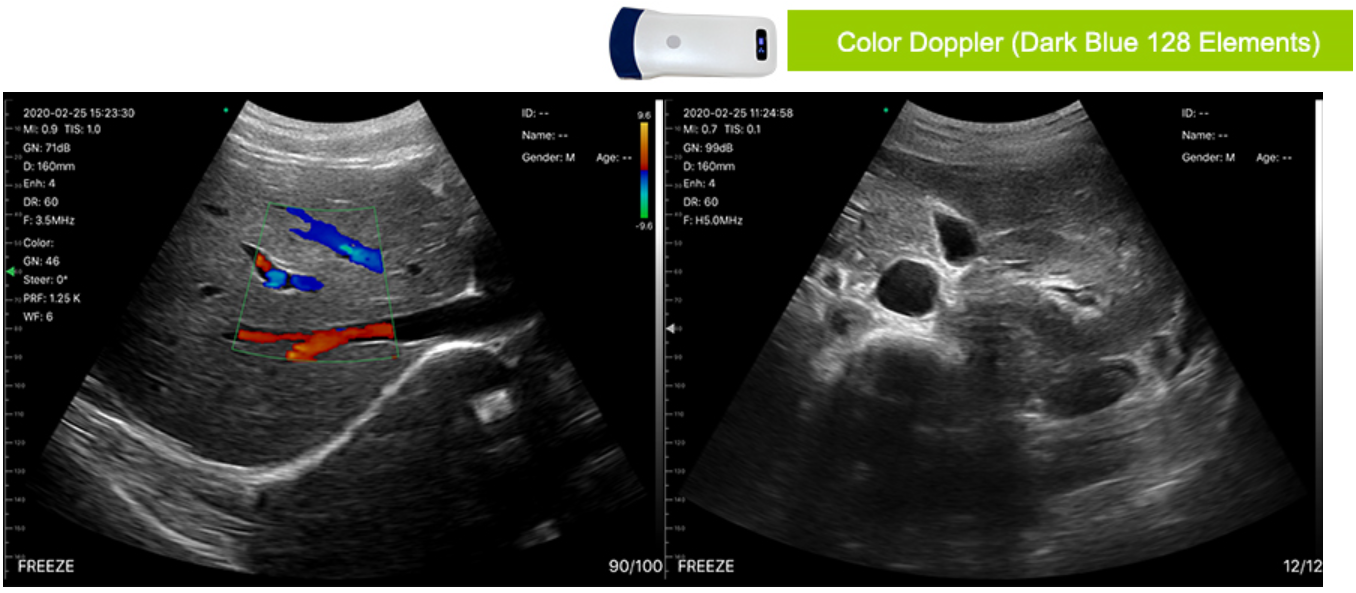

Color Doppler (White Head 192 Elements/Dark Blue 128 Elements).

High Configuration B/W (Light Blue 128 Elements).

Low Configuration B/W (Grey 80 Elements).



How it works

The Sonostar wireless probe is a mini ultrasound scanner without a screen. We minimize the components of a traditional ultrasound into a small circuit board built into the probe, and showing image in smart phone/tablet through Wifi transferring. image can both show in screen and tablet.Image transferring through internal wifi from probe, no need external Wifi signal.


Specifications

-Scanning mode: Electronic array

-Display mode: B, B/M, color doppler version with B+Color, B+PDI, B+PW

-Probe element: 80/128/192

-Channel of RF circuit board: 16/32/64

-Probe frequency and scan depth, scan angle, head radius: 3.5MHz/5MHz, 90/160/220/305mm, 60°, 60mm

-Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF

-Cineplay: auto and manual, frames can set as 100/200/500/1000

-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.

-Measure: Length, Area, Angle, heart rate, Obstetrics

-Image save: jpg, avi and DICOM format

-Image frame rate: 18 frames / second

-Battery working time: 3~5 hours(according to different probe and whether keep scan)

-Battery charge: by USB charge or wireless charge, take 2 hours

-Dimension: 156×60×20mm

-Weight: 220g~250g

-Wifi type: 802.11g/20MHz/5G/450Mbps

-Working system: Apple iOS and Android, Windows




Exhibition


Portable Wireless Ultrasound is a mini ultrasound scanner without screen. probe device combined with integrated ultrasound boards,ultrasound probe integrated with usg board,imaging transmission done by special wifi to pad and phone.We have Single Head Ultrasound Series and Double Head Ultrasound.

Through professional ultrasound software APP,wireless probe wifi connected with smart phone or tablet to become a ultrasound scanner.

Single Head Ultrasound Series have different Specification to chose, including B/W Ultrasound Scanner (80E, 128E, 192E) and Color Doppler Ultrasound (80E, 128E, 192E).

Double Head Ultrasound is Color Doppler Ultrasound with difference probe head to chose, also with different element (128E,192E).
