MT Medical Ultrasound Instruments 128 Elements Cheap Black And White Ultrasound Machine Price

Product Description

You Maybe Also Like
C-80
C-80PLUS
C-90
Product Description

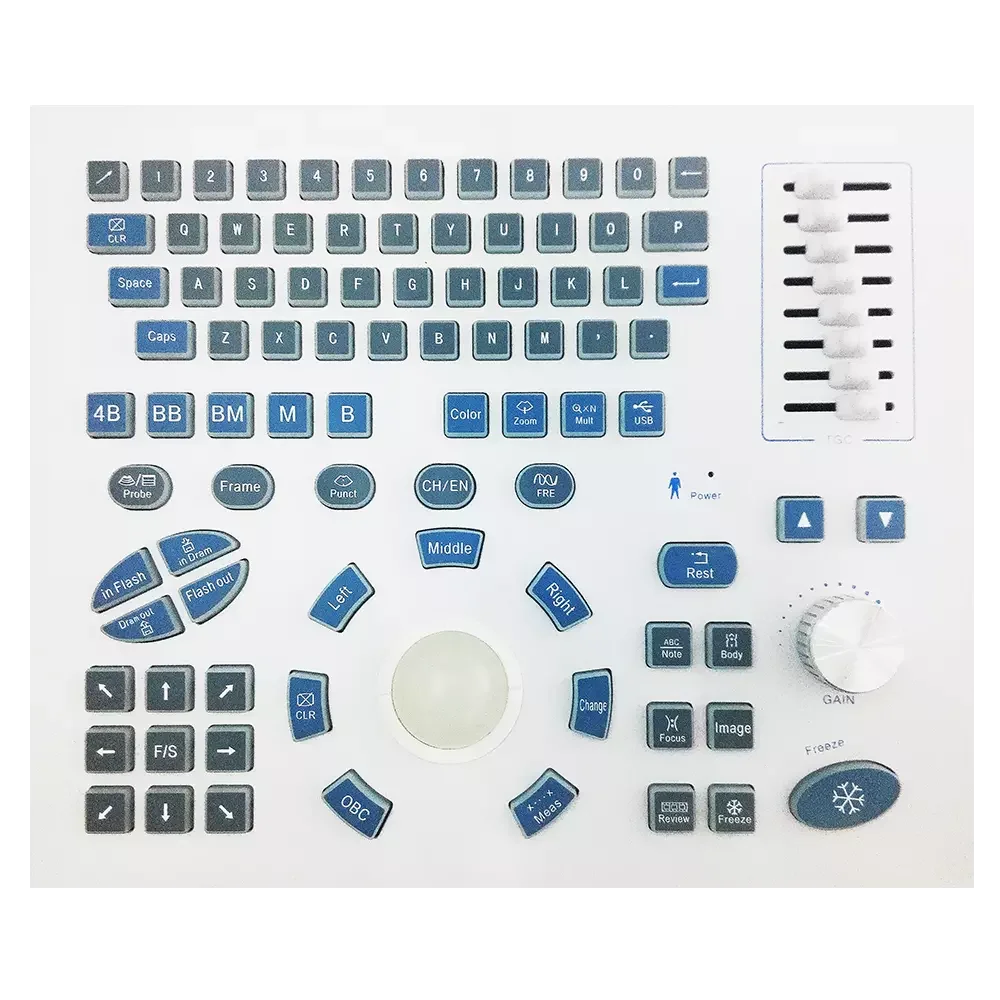

Full keyboard and shortcut key

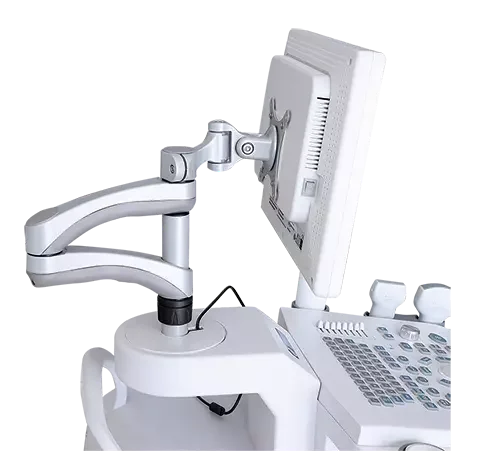

360° swinging strut
Product Paramenters
Item
Details



Flexible & convenient operating system
* 15 inch LED liquid crystal display, angle range is more flexible to adjust
* Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
* Intelligentized menu,man-machine diaglogue is easy and quick
* Puncture guide line can display under B mode, angle and position are adjustable
* More magnification display, Disease diagnosis more accurate
* USB storage is connected outside, more convenient to upload pictures
* Large capacity of cine loop, image can display circularly and automatically


Medical ultrasound scanner application
Obstetric
Andrology
Gynecological
Urology
Multiple births
Small organ















Technical Specification
*Scanning mode: convex / linear / micro-convex
Probes: convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe.
*Monitor: 15 inch high resolution LED
*Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation.
*Display mode: B, B+B, B+M, M, 4B
*Detecting depth: ≥242mm
*Resolution: lateral≤2mm, axial≤1mm
*Blind Zone: ≤3mm
*Geometry precision: lateral≤5%, axial≤5%
*Gray scale: 256
*Electronical focusing: 2 focuses combination randomly
*Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
*USB port: storable and readable
*Image storage: 8
*Local zoom can be used at real time.
*Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
*Body marks: 30
*Probe interface: 2
*Pseudo color: 7
*Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
*Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
*Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
*Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
*With the puncture guiding function, line position can be adjusted
*With gravel positioning, dynamic target area tracking function
*Main power supply: AC220V±22V , 50/60Hz
Probe
96 elements
Standard Configuration
*Main Unit
*15 inch high resolution LED display
*USB ports,SVGA
Optional Configuration
*3.5Mhz convex probe
*6.5Mhz R10 trans-vaginal probe7.5Mhz linear probe
*3.0Mhz Micro-convex probe
*3D work station
*Any Printer

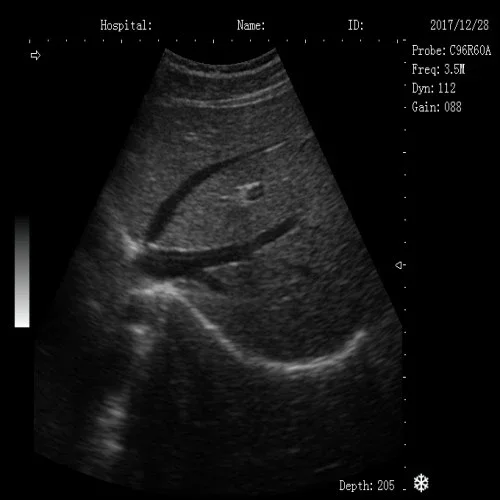

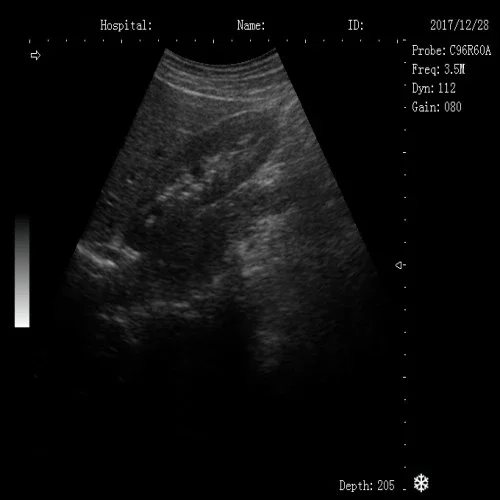

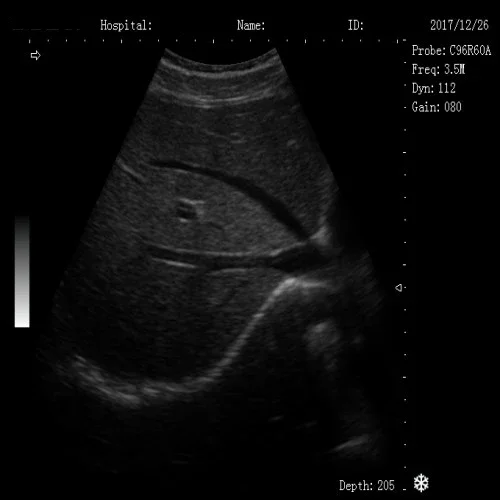

Imaging Diagram
