Laptop Digital 3D 4D color doppler portable medical Ultrasonic Diagnostic ultrasound machine price

Product Description

You Maybe Also Like
T70
C-80PLUS
C-90
Product Description

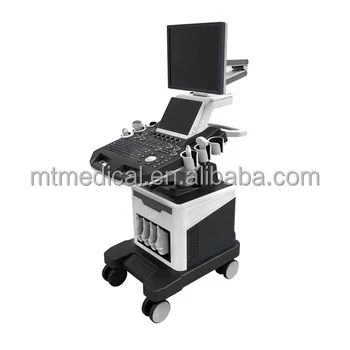

Ultrasound Model: C-80plus

This color Doppler ultrasonic diagnostic apparatus adopts the use of foreign advanced technology, is based on
computer and ultrasound front end of a variety of advanced image processing technology at both domestic and
international combined ultrasound imaging system.
This color Doppler ultrasonic diagnostic apparatus is not only for a variety of conventional B/W images of
ultrasonic diagnosis, but also on the cardiovascular disease and other diseases for early high image quality diagnosis
based on color Doppler field.

Product Paramenters
Monitor:
17 inch LED medicinal monitor
Support:
convex, linear, trans-vaginal, micro-convex, 4D volume, rectal probes etc.
Probe interface:
≥3 active probe interfaces, probe automatic identification.
Language:
Chinese/English/Spanish/French/Russian/Arabic/Vietnamese/Portuguese
Display mode:
 B mode(B, B+B, 4B, B+M、M), C mode, PW mode, real time 3D mode(4D), B/C, B/C/PW, B/PW: 4 scanning speed adjustable
Electronic focus:
4
Convex probe frequency range:
2.0, 3.0, 3.5, 4.0, 5.5MHz
Trans-vaginal probe frequency range:
5.0, 6.0, 6.5, 7.5, 9.0MHz
Linear probe frequency range:
6.0, 6.5, 7.5, 10.0, 12.0MHz
Micro-convex probe R20 frequency range:
5.0, 6.0, 6.5, 7.5, 9.0MHz
Micro-convex probe R11 frequency range:
2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHz
4D volume probe frequency:
2.0, 3.0, 3.5, 4.0, 5.5, 6.5MHz
Magnification:
2-10 times magnification
Gray Scale:
256
Dynamic range:
0-270dB
Intelligent TGC:
8 segments
Frame rate:
5-1016fps (adjustable as per requirement)
Gain control:
Total gain 0~127dB, PW gain 0-15, CFM gain: 0-15
Image optimization:
6 level adjustable
Smoothing:
8 level adjustable
PRF:
16 level adjustable (1.82-29.43KHz)

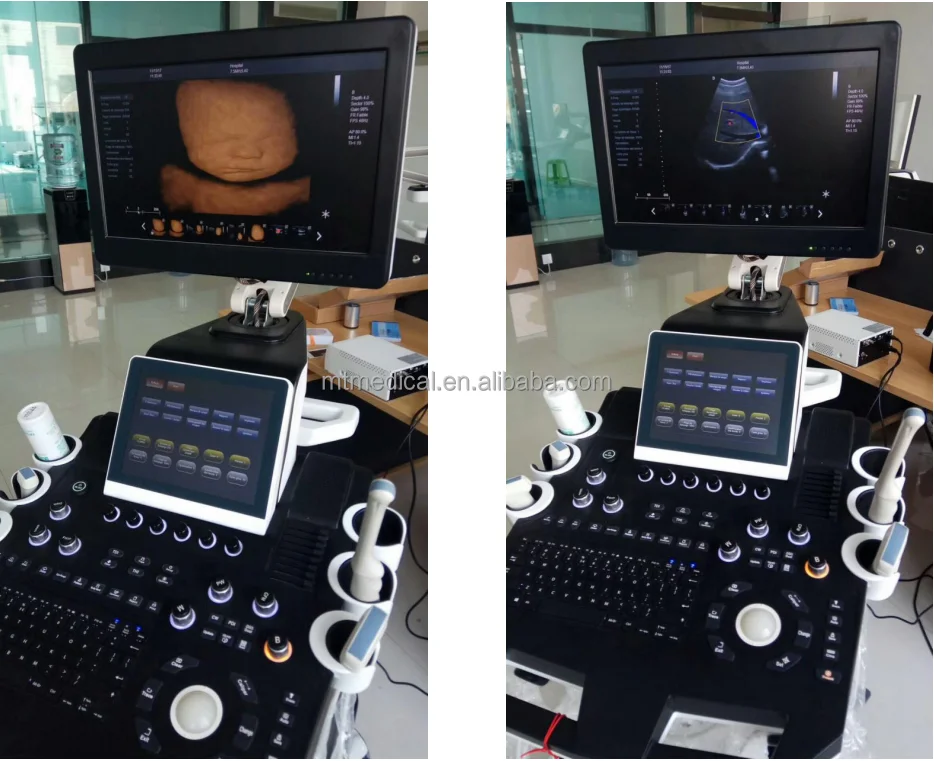

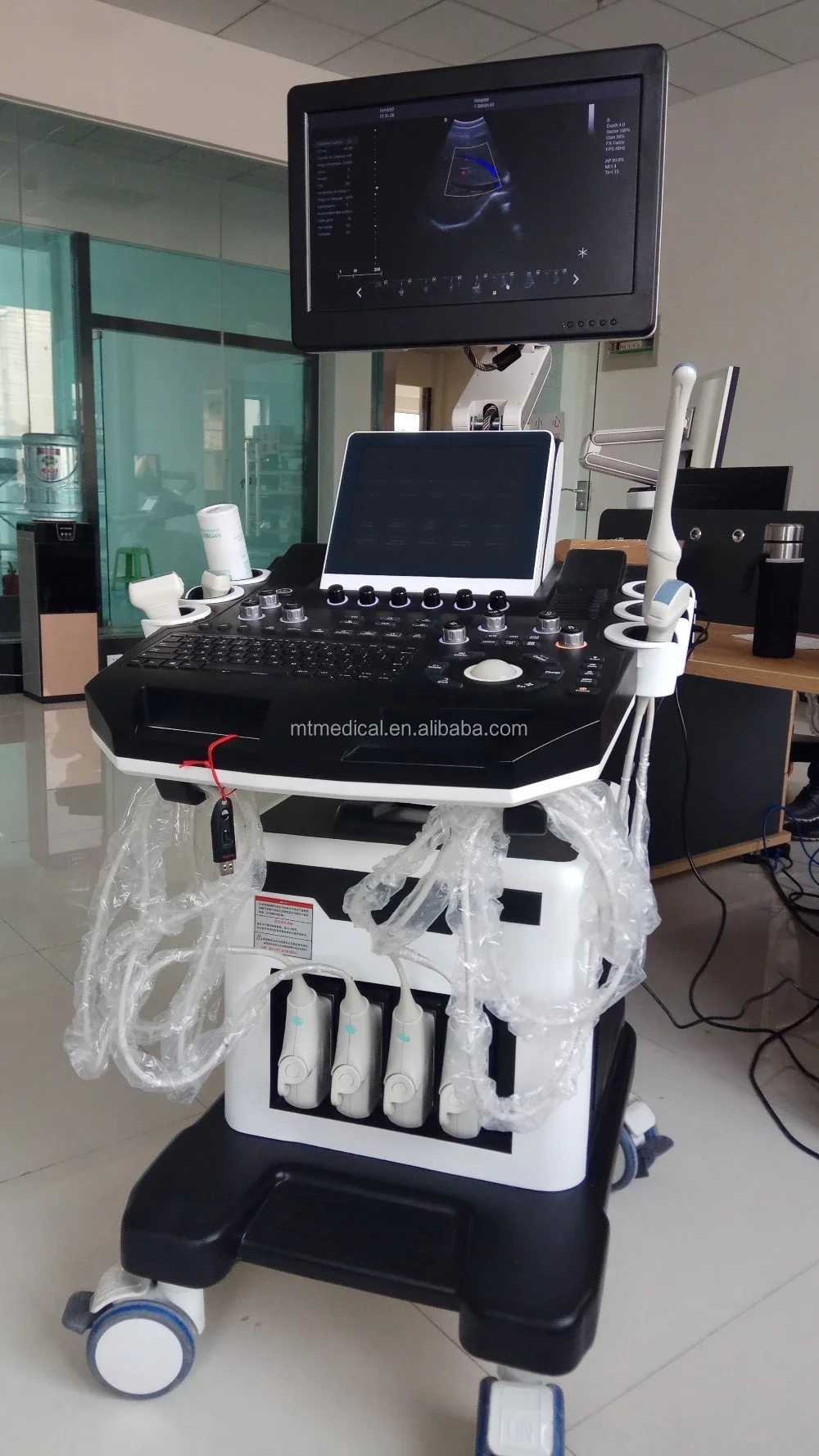

Detailed Images

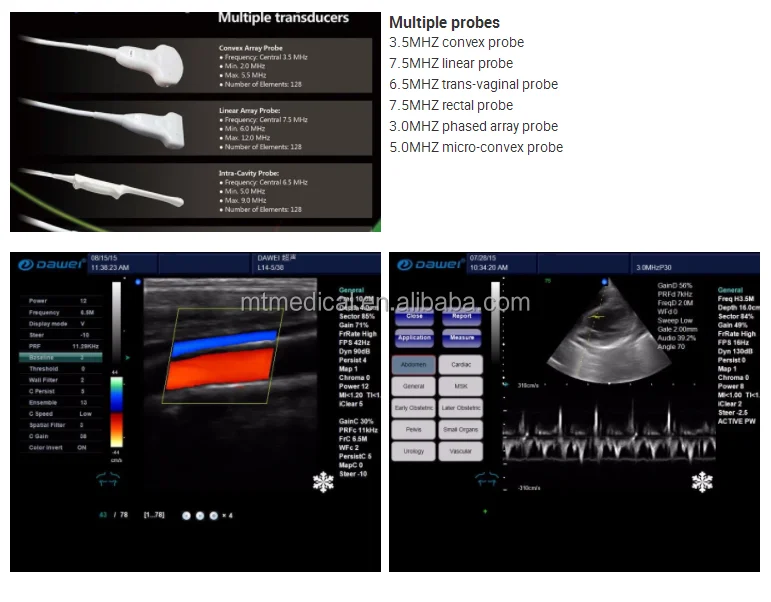

Convex Probe Imaging Diagram
Linear Probe Imaging Diagram
Trans-vaginal Probe Imaging Diagram
4D Volume Probe Imaging Diagram
